ETFE-400 Good Light Transmission and High Quality ETFE Structures Architecture Membrane Tensile Structure

ETFE is basically a see-through plastic that's super tough. It doesn't get damaged by sunlight, pollution, or bad weather, and it won't turn yellow or get brittle like other plastics do.

This material is changing the way we build. ETFE offers a unique combination of properties: lightweight construction, high strength, light transmittance, self-cleaning capability, and environmental sustainability. You can see ETFE in the bubble-like walls of Beijing's "Water Cube" and in many modern airports and train stations. It's helping to shape the future look of our cities.

Applications:

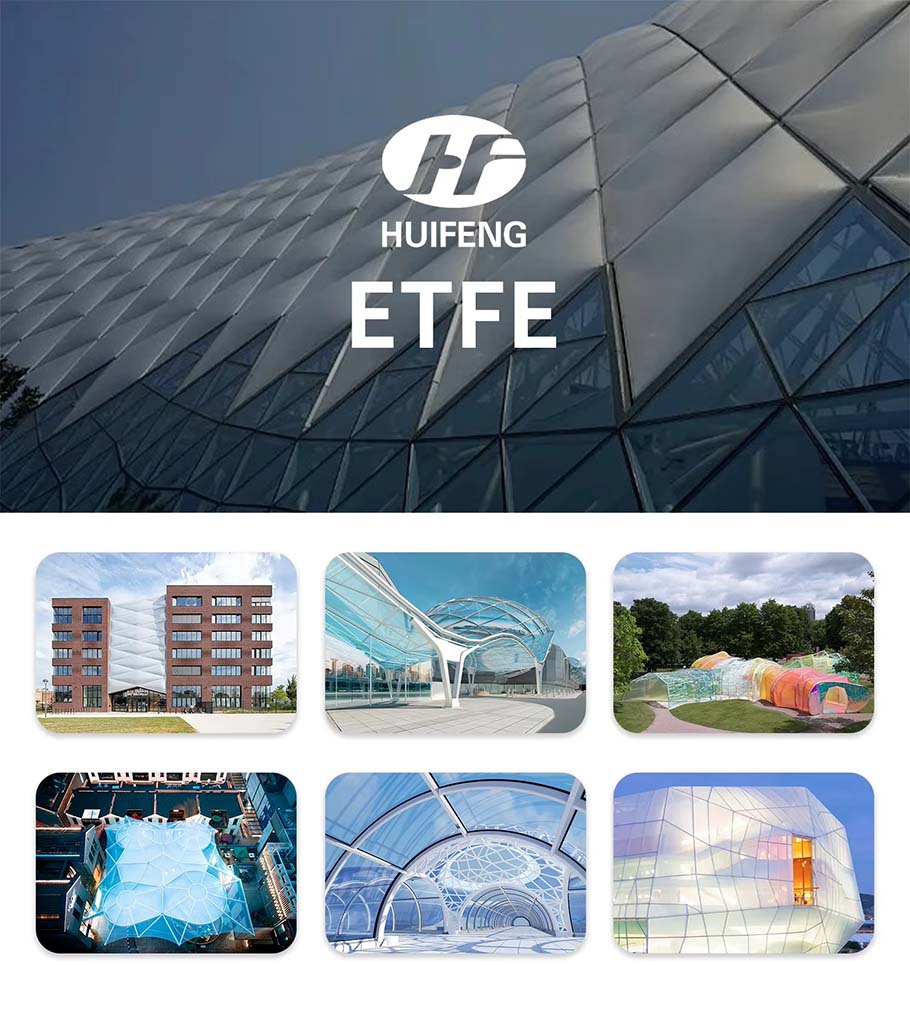

1. Large stadiums and transportation hubs: Used on roofs and facades, creating bright and open spaces. For examples: the Beijing Olympics National Aquatics Center (Water Cube), Munich's Allianz Arena, Singapore's Marina Bay Sands, and Harbin Railway Station.

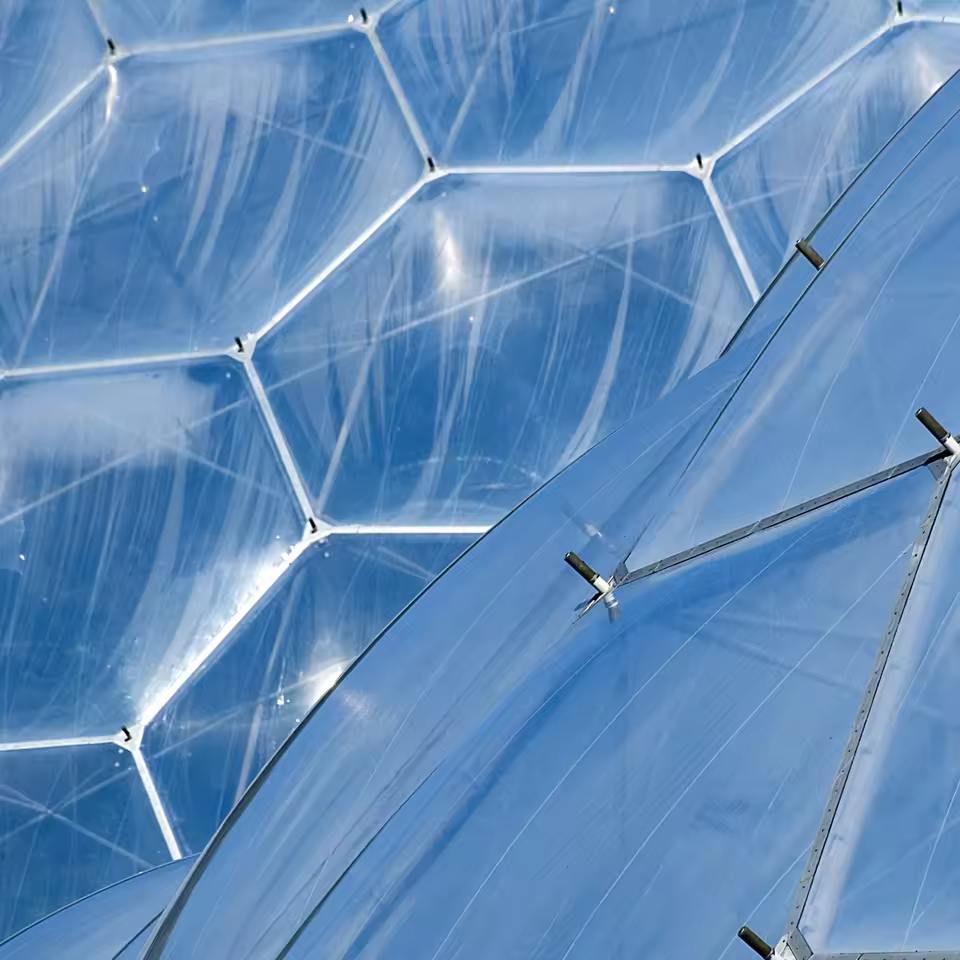

2. Botanical gardens and greenhouses: High light transmittance and thermal insulation provide an ideal environment for plant growth, such as the UK's "Eden Project."

3. Commercial building and canopies: Create bright public spaces in shopping malls and office buildings.

ETFE-400   Technical Data
ItemUnitDateTest method
Widthm1.6/2.0ISO 4592
Thicknessμm400ISO 4593
Tensile(MD)MPa>40ASTM D882
Tensile(TD)MPa>40ASTM D882
Elongation at break(MD)%>400ASTM D882
Elongation at break(MD)%>400ASTM D882
Temperature-200~150ASTM D1505
Oxygen indexVol%≥30ASTM D1505
Transmissivity%>89UV-Vis spectrophotometer
RemarkItaly Raw Materials
