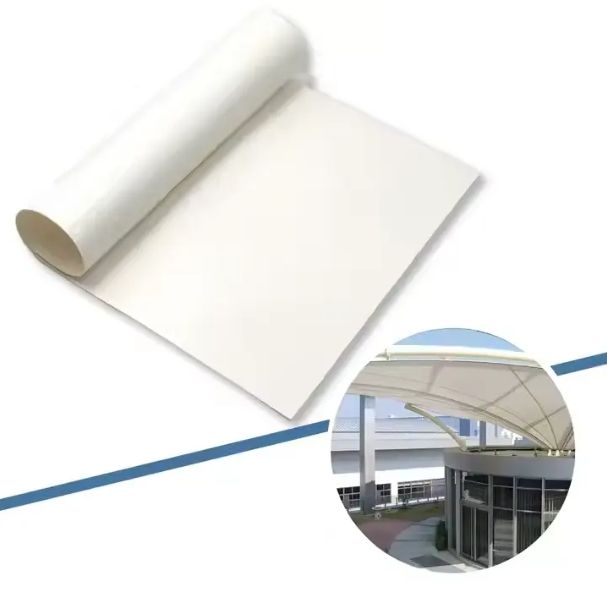

With the highest tensile strength of 10000N/5cm, Huifeng PVDF high-strength structure membrane material Q10015BDXT, which uses high-strength PES fiber base fabric, can be widely used in a variety of large-span membrane construction projects. The material is also quite durable and has a good anti wicking ability. The product's surface TiO2 coating can minimize the rate at which the material ages outside, strengthen the product's capacity to scatter sunlight, shield the PVDF self-cleaning layer from the effects of PVC, and prolong its service life. The product is widely applicable to tensile structure and Air dome membrane structure.
| Q10015BDXT Technical Data | |||
| Item | Unit | Date | Test method |
| Width | m | ≤3.2 | ISO 22198 |
| Weight | g/㎡ | 1500±50 | DIN EN ISO 2286 |
| Thickness | mm | 1.2±0.05 | DIN EN ISO 2286 |
| Tensile | N/5cm | ≥10000/≥9500 | GB/T 3923.1 |
| Tear | N | ≥1500/≥1500 | GB/T 3917.3 |
| Adhesion | N/5cm | ≥120 | DIN 55543 |
| Transmissivity | % | 6±3 | FZ/T 01009 |
| Flame Resistance | B1/B2* | GB 8624-2012 | |
| Base Fabric | Polyeater | ||
| Coating | PVC | ||
| Surface Treatment | PVDF/PMMA* | ||
