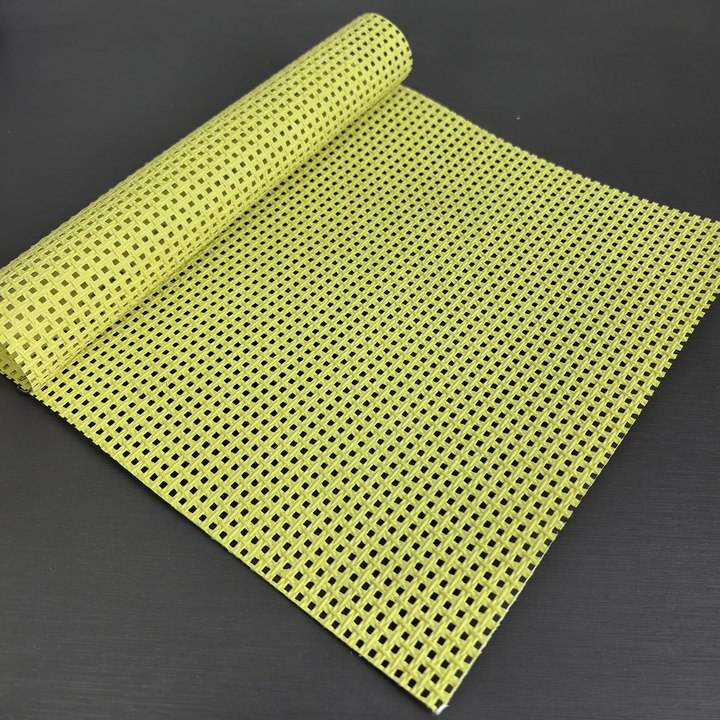

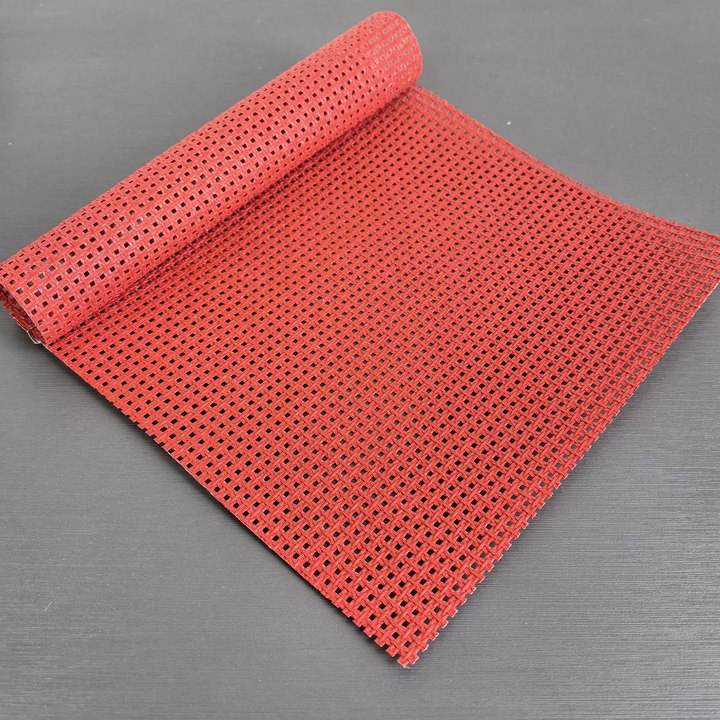

Rich Colors: PTFE colored mesh membranes can achieve colors such as red, yellow, and silver through specialized surface coating treatment, matching the color of metal. They also have excellent colorfastness and will not fade.
Lightweight and High-Strength: Lighter than metal and with high tensile strength, it is suitable for large-span tension structures.
Good Flexibility: Compared to metal, PTFE membranes have good flexibility, can be cut and welded, and are suitable for various complex curved surface and tension structure designs.
Self-Cleaning: PTFE has good self-cleaning properties; rainwater can keep it clean, reducing maintenance costs.
| Mesh 4*4 Technical Data | |||
| Item | Unit | Date | Test method |
| Width | m | ≤3.8 | ISO 22198 |
| Weight | g/㎡ | 850±30 | DIN EN ISO 2286 |
| Fiberglass | EC6 | ||
| Thickness | mm | 0.80±0.05 | DIN EN ISO 2286 |
| Tensile | N/5cm | ≥4000/≥4000 | DIN 53354 |
| Tear | N | ≥400/≥400 | DIN 53363 |
| Adhesion | N/5cm | 120 | DIN 55543 |
| Transmissivity | % | 8 | FZ/T 01009 |
| Flame Resistance | A | EN 13501-1 | |

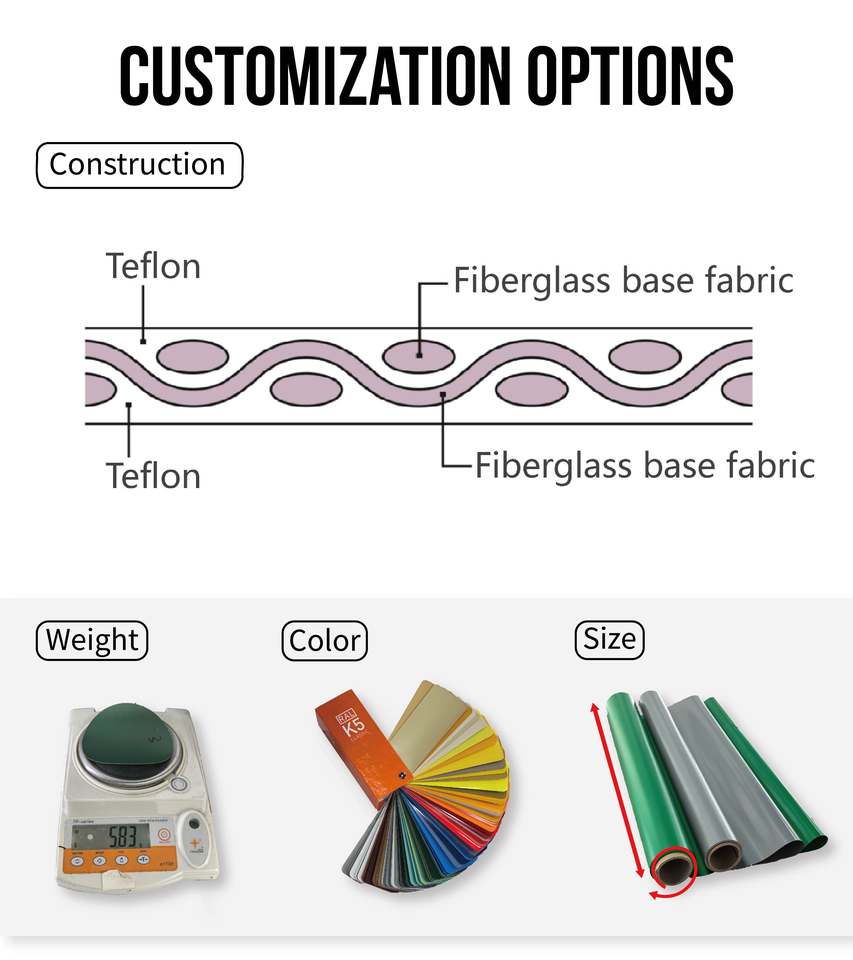

| Base Fabric | Fiberglass | ||
| Coating | PTFE | ||
Unique optical properties: incident light during the day becomes natural warm light, and the light is evenly distributed; high reflectivity at night gives the room excellent lighting effects and reduces energy consumption.
Excellent self-cleaning ability: surface dust can be washed away by rain, keeping the building clean, and the service life is three times that of ordinary structural membranes.High light transmittance: the light transmittance can reach more than 20% after sun exposure, with strong heat dissipation capacity and less heat absorption.The service life exceeds 25 years.
| PTFE | PVC | |
| Type | Permanent | Long term |
| Coating | Teflon | PVC |
| Base Fabric | Fiberglass | Polyester fiber |
| Service Life | 20-25 years | 5-15 years |
| FR | A2 | B1 |
| Self-cleaning | Permanent | 3-8 years |
| Weather Resistance | Great/No-yellowing | Normal/Yellowing |

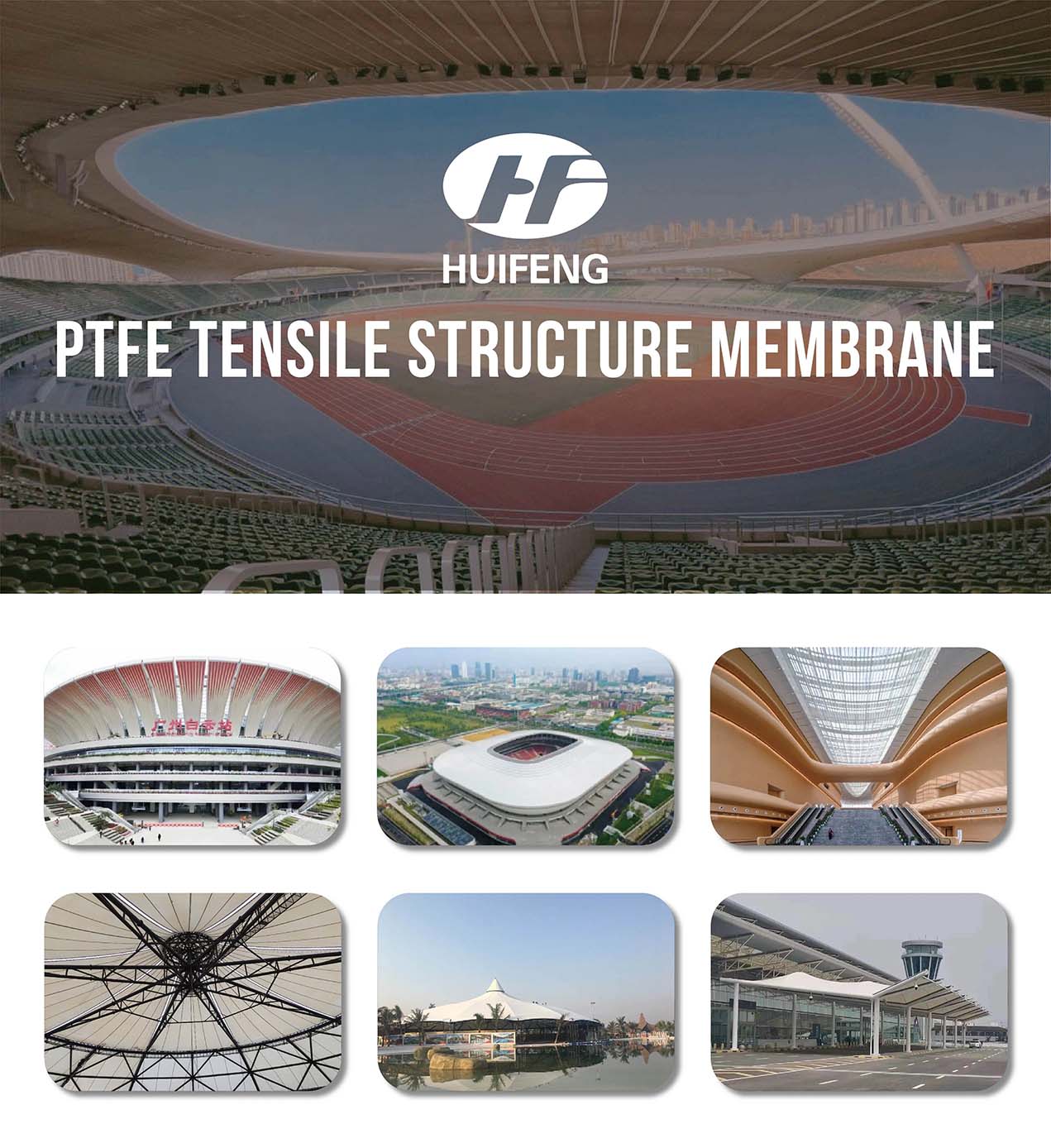

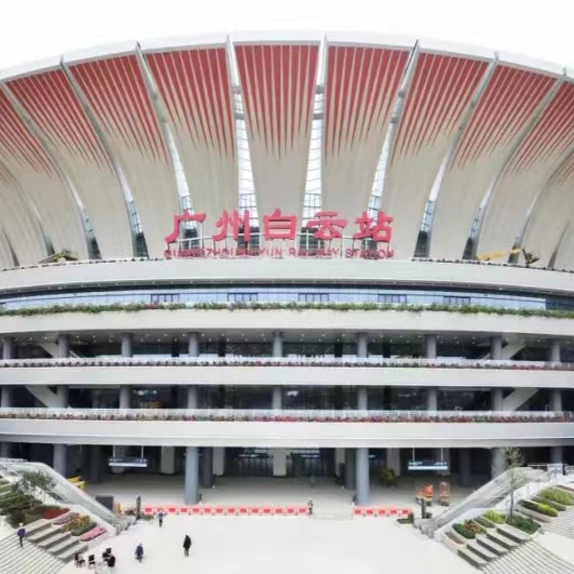

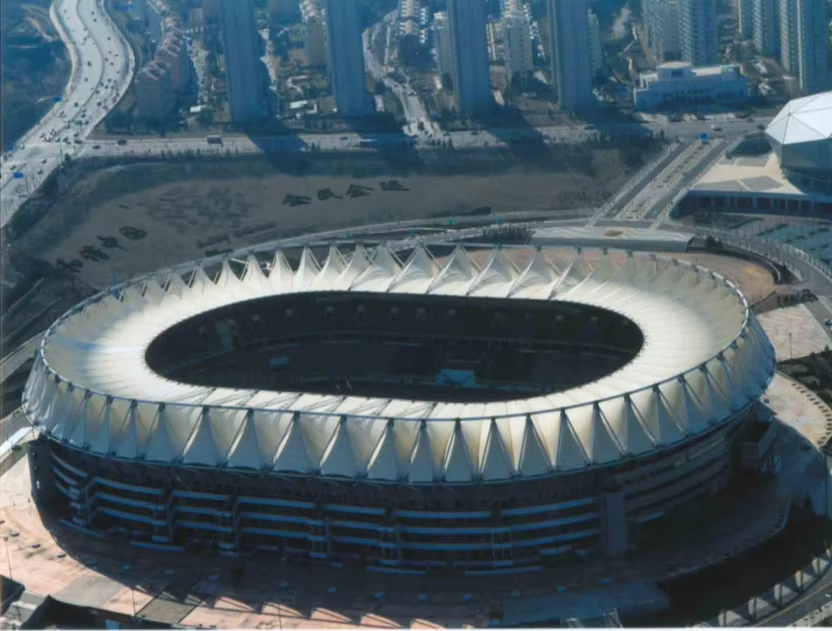

Sports Venues: Roof systems for sports venues, stadium seating, tennis court roofs, etc.Public facilities: toll station, gas station, parking lot, train station, bus shelter and other membrane structure. Urban facilities: Cultural square, performance stage, exhibition center, theater and other top surface. Commercial facilities: shopping malls, amusement centers, hotels, restaurants, commercial streets and other top aspects.
