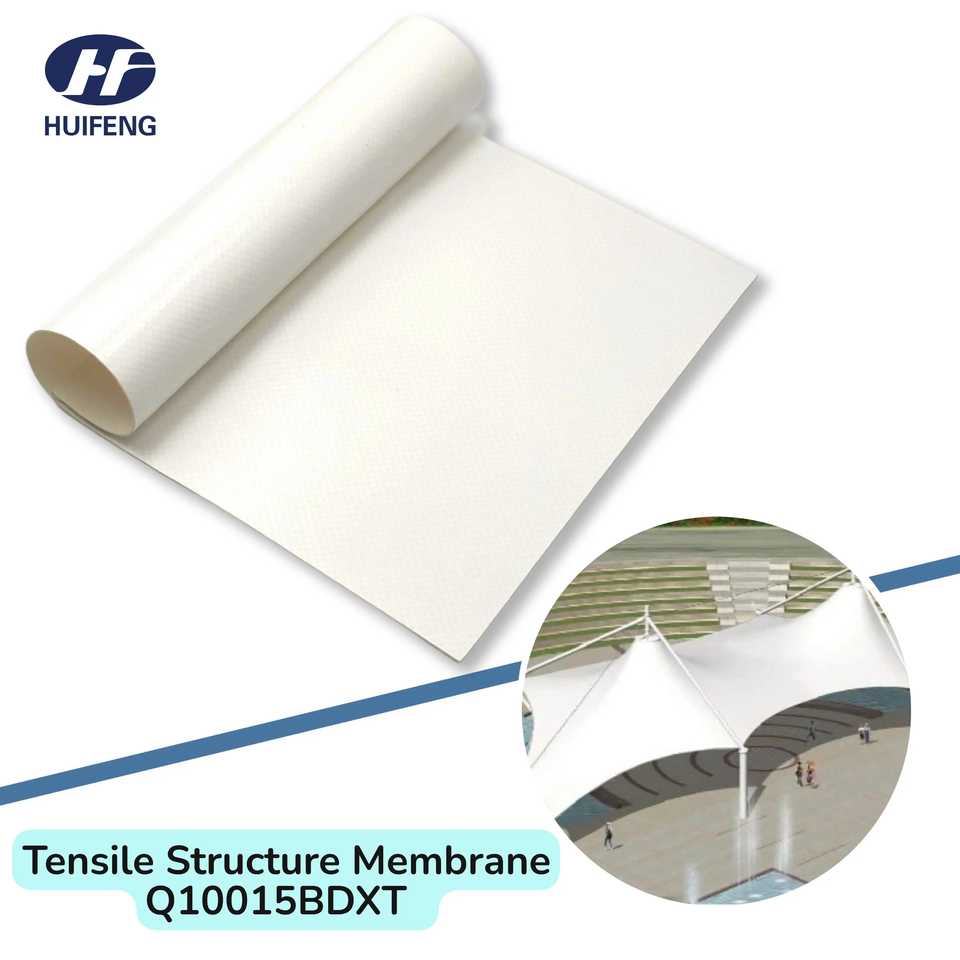

Q10015BDXT Industrial Fabric Tensile Structure Membrane Building Roof Cover PVC Coated Fire Resistance Water Resistant Plain

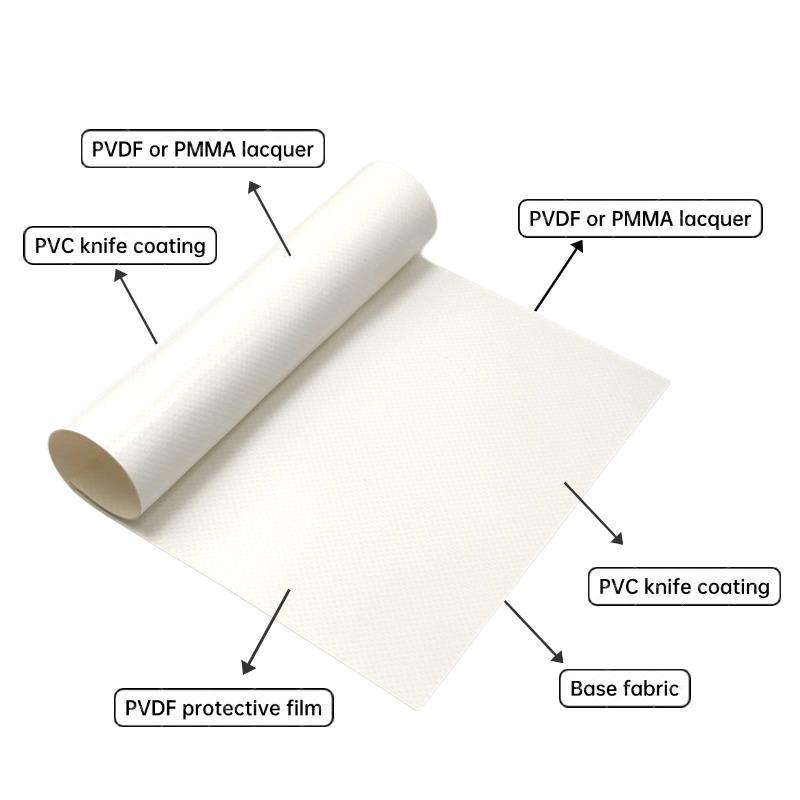

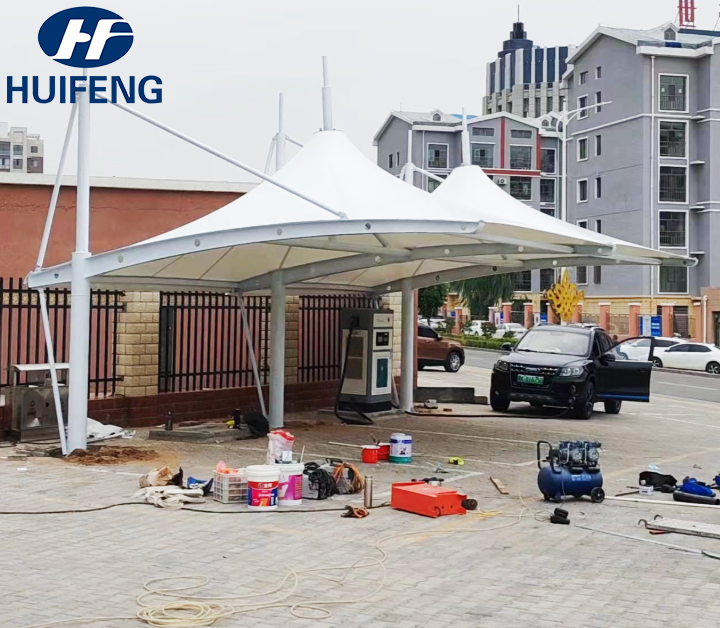

With the highest tensile strength of 10000N/5cm, Huifeng PVDF high-strength structure membrane material Q10015BDXT, which uses high-strength PES fiber base fabric, can be widely used in a variety of large-span membrane construction projects. The material is also quite durable and has a good anti wicking ability. The product's surface TiO2 coating can minimize the rate at which the material ages outside, strengthen the product's capacity to scatter sunlight, shield the PVDF self-cleaning layer from the effects of PVC, and prolong its service life. The product is widely applicable to tensile structure and Air dome membrane structure.


Q10015BDXT Technical Data
ItemUnitDateTest method
Widthm≤3.2ISO 22198
Weightg/㎡1500±50DIN EN ISO 2286
Thicknessmm1.2±0.05DIN EN ISO 2286
TensileN/5cm≥10000/≥9500GB/T 3923.1
TearN≥1500/≥1500GB/T 3917.3
AdhesionN/5cm≥120DIN 55543
Transmissivity%6±3FZ/T 01009
Flame ResistanceB1/B2*GB 8624-2012
Base FabricPolyeater
CoatingPVC
Surface TreatmentPVDF/PMMA*
