Huifeng PVDF high-strength structure membrane material Q5510BD can be widely used in a variety of large-span membrane construction projects. The material is also quite durable and has a good anti wicking ability. It can minimize the rate at which the material ages outside, strengthen the product's capacity to scatter sunlight, and prolong its service life. The product is widely applicable to tensile structure.
| Q5510BD Technical Data | |||
| Item | Unit | Date | Test method |
| Width | m | ≤3.2 | ISO 22198 |
| Weight | g/㎡ | 1050±50 | DIN EN ISO 2286 |
| Thickness | mm | 0.85±0.05 | DIN EN ISO 2286 |
| Tensile | N/5cm | ≥5000/≥5000 | GB/T 3923.1 |
| Tear | N | ≥700/≥700 | GB/T 3917.3 |
| Adhesion | N/5cm | ≥110 | DIN 55543 |
| Transmissivity | % | 6±3 | FZ/T 01009 |
| Flame Resistance | B1/B2* | GB 8624-2012 | |

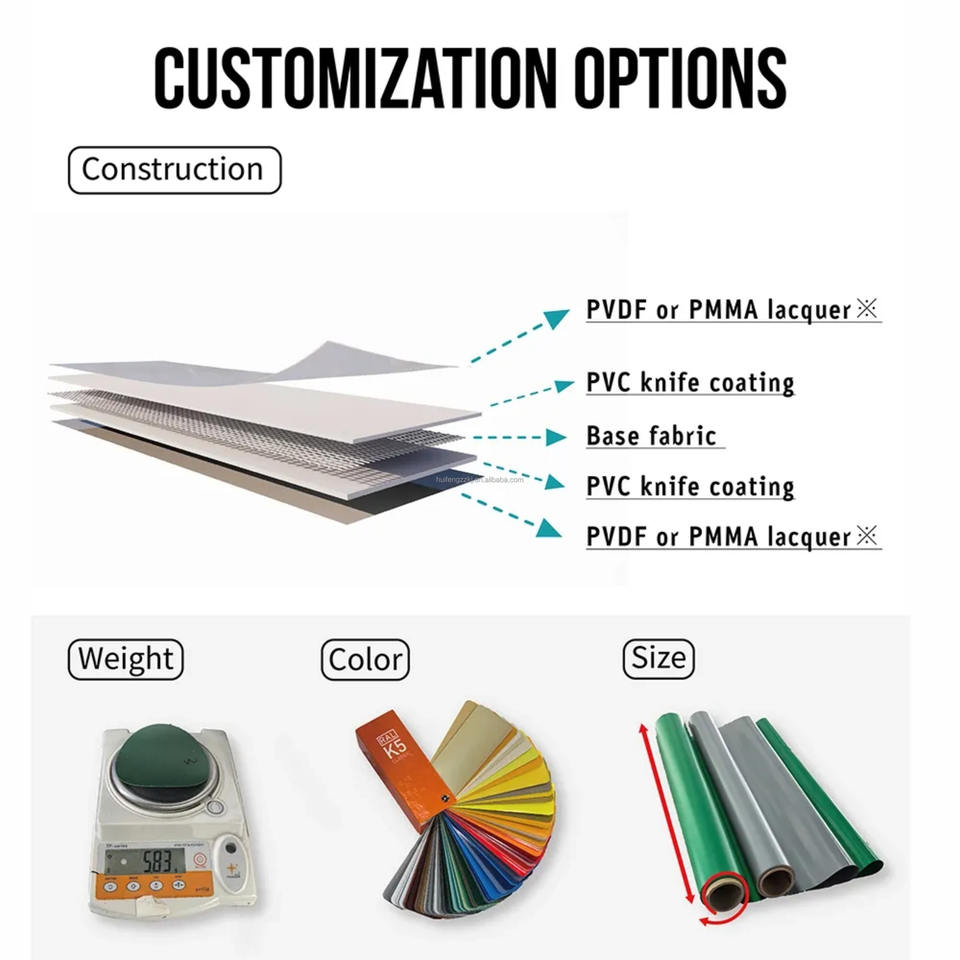

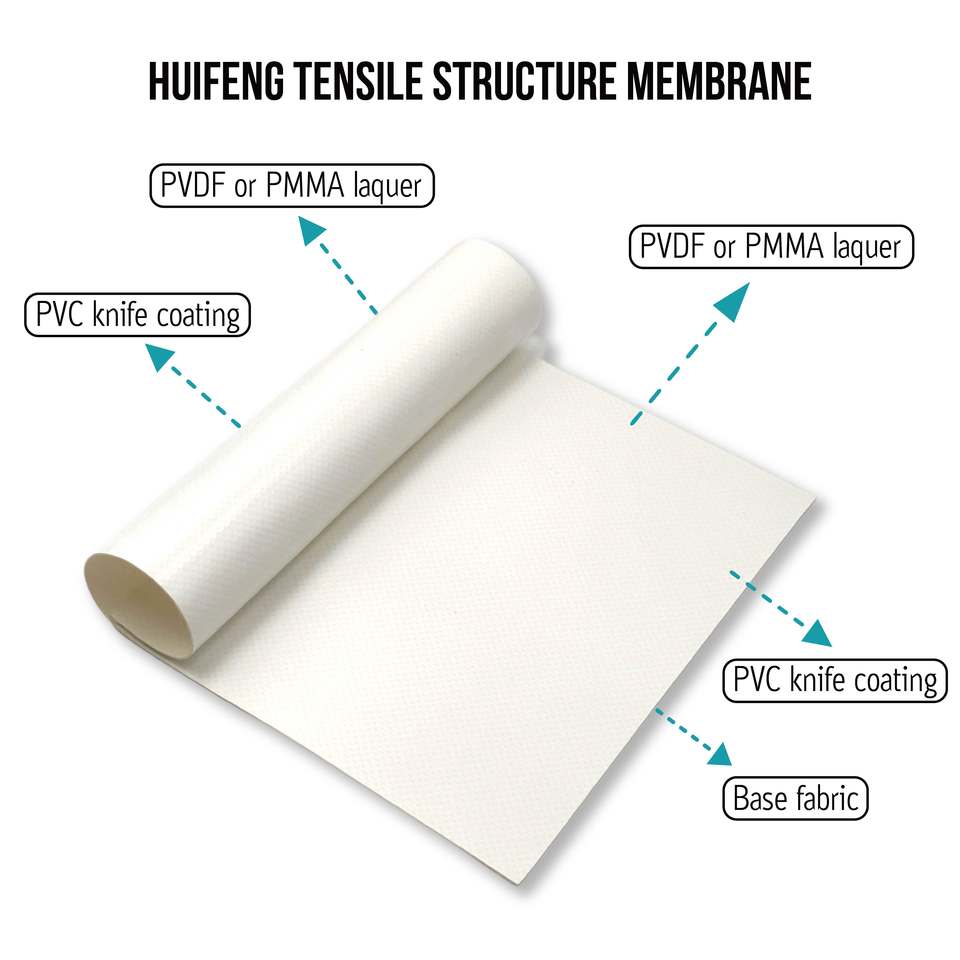

| Base Fabric | Polyeater | ||
| Coating | PVC | ||
| Surface Treatment | PVDF/PMMA* | ||
